CNC Hob Sharpening Machine


CNC Hob Sharpening Machine

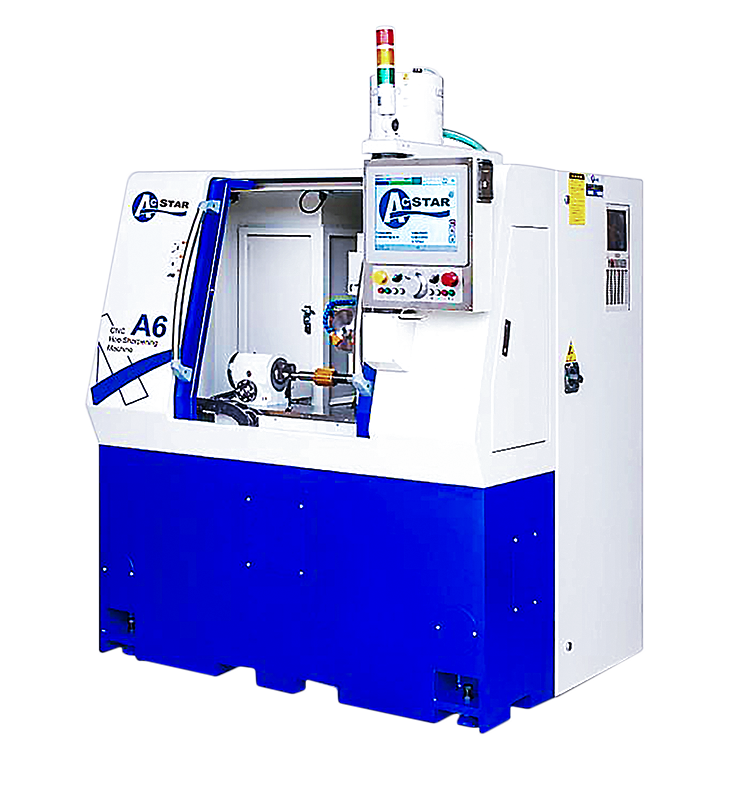

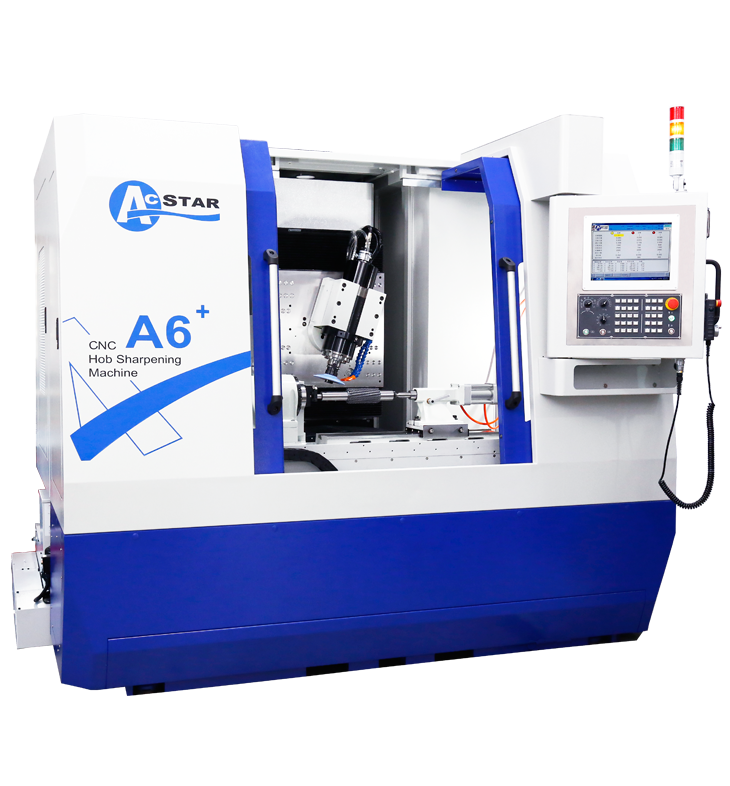

The A6 / A6+ CNC Hob Sharpening Machines from ACSTAR are developed with ACSTAR’s extensive experience in cutting tool machining equipment in combination with the latest technology. Featuring advanced computer control, the series of machine are high precision, versatile grinding machines with 5 axes control and 4 axes simultaneous control. These machines are applicable for sharpening hobs with straight and spiral flutes. In addition, upon customer’s requirement, these machines are available to design with an additional complicated part grinding function for sharpening the cutting edge of the slotting hob. The models A6(op) /A6+ employ HSK interchangeable grinding wheel shank that helps to reduce wheel change time during machining, resulting in a higher production efficiency and increase of customer’s product development competition capabilities. As such, ACSTAR A6 / A6+ series is your best choice in upgrading production competitiveness and product development.

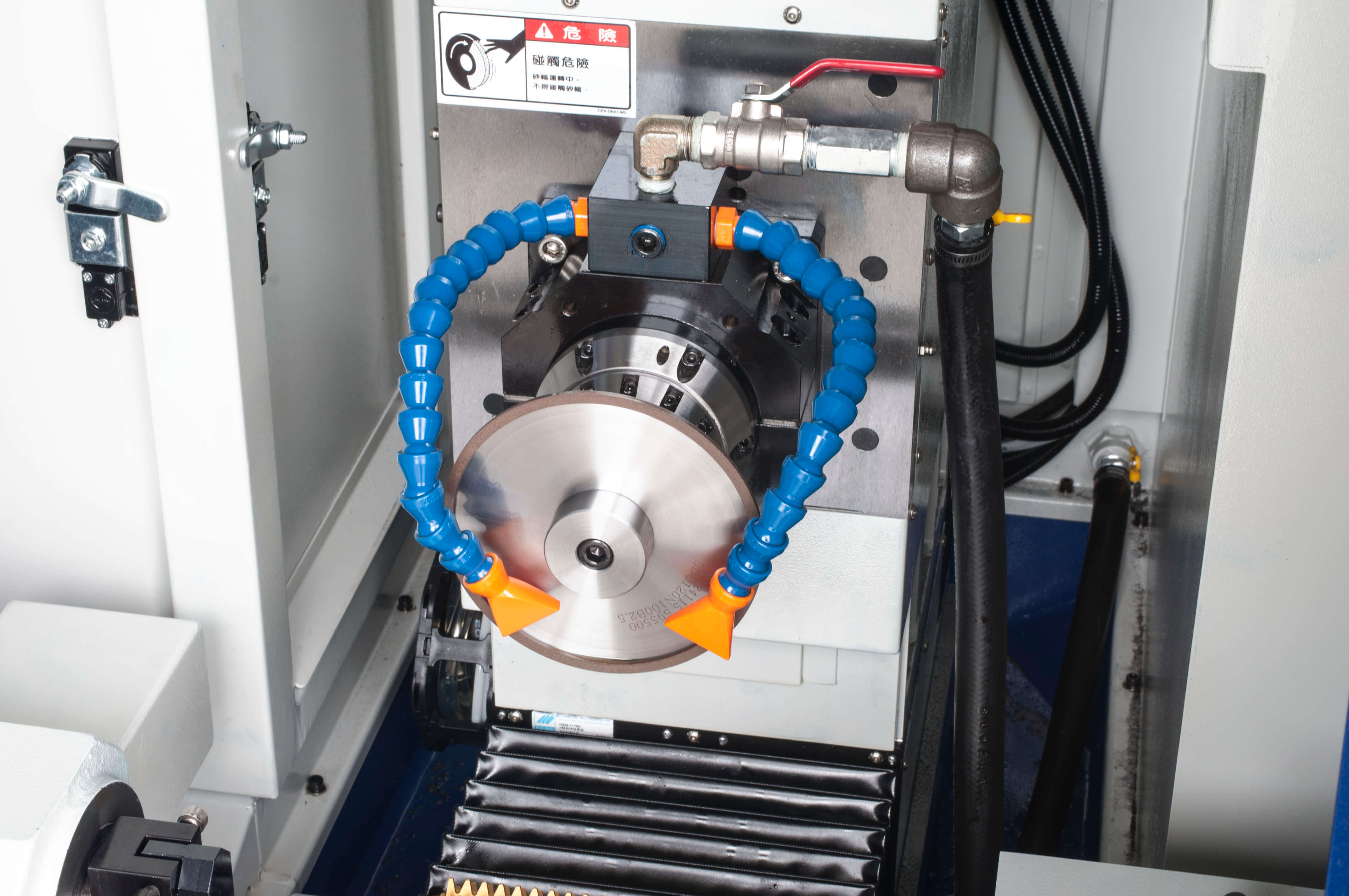

Wheel Head

  • - The wheel head employs a built-in type wheel spindle, providing maximum speed of up to 10,000 rpm.
  • - Inserted type spindle design not only saves space but also increases spindle rigidity.
  • - Accommodates CBN and conventional grinding sheels.

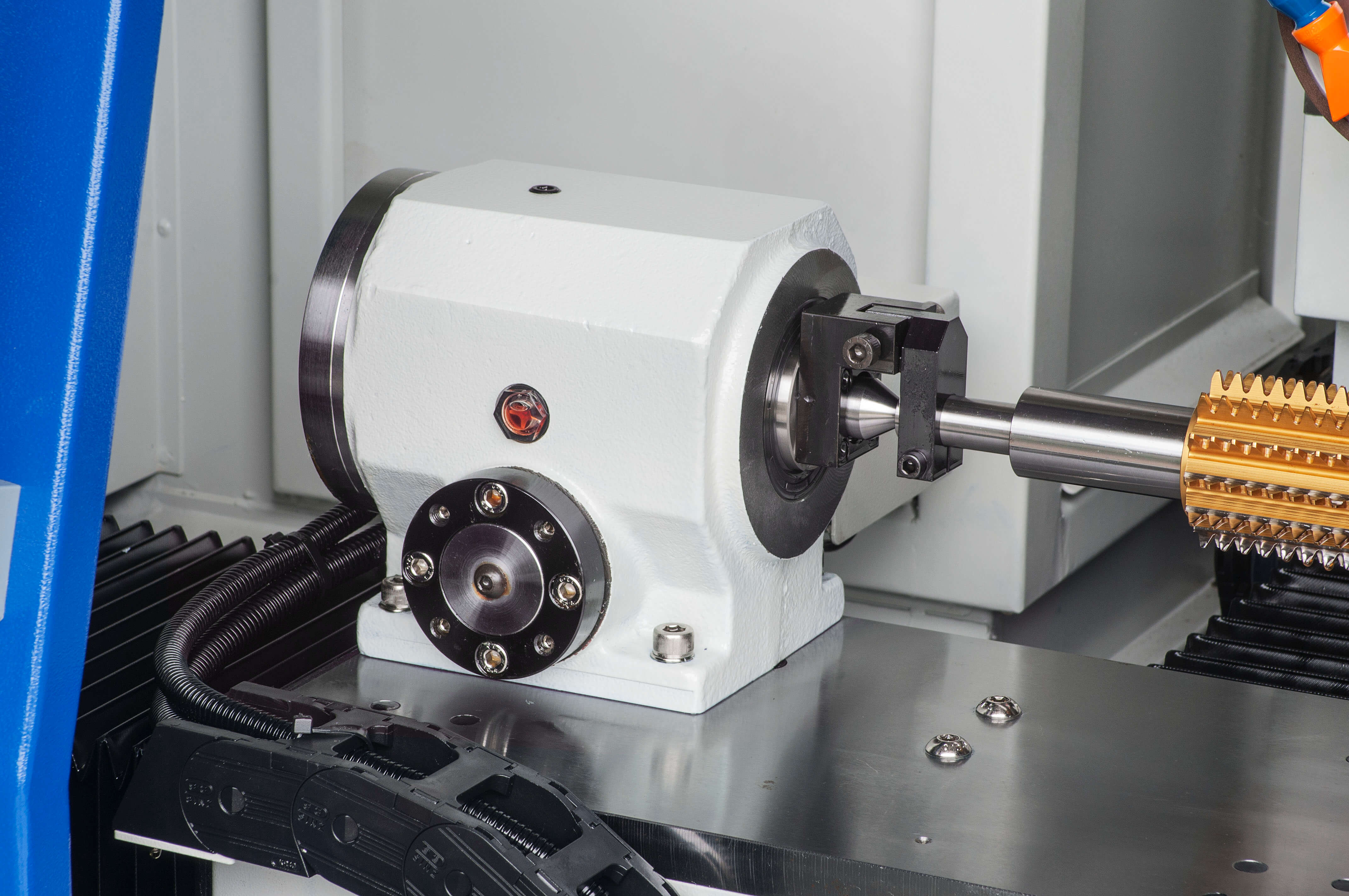

Spindle Head

  • - Employs high precision angular contact roller bearing for resisting axial and radial loads.
  • - The spindle head (C-axis) is driven by a servo motor allowing hob to position accurately.
  • - Employs high precision worm gear set. (Japanese made)

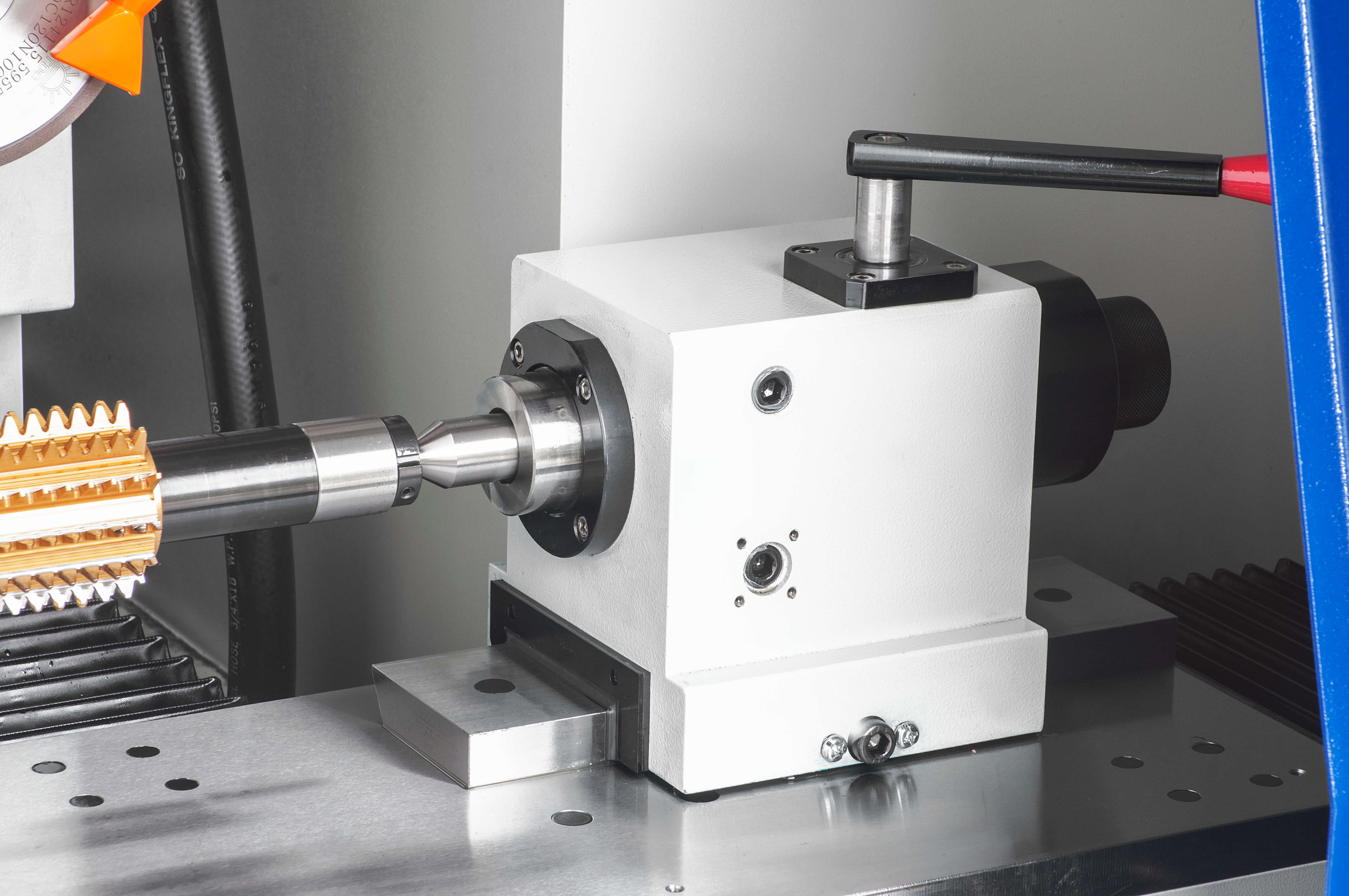

Manual Tailstock

  • The tailstock quil movement is manually operated.
  • Oil-immersed lubrication ensures smooth and durable sliding.
  • Quill pressure can be adjusted by a regulation knob.


  • This machine is suitable for grinding Hob cutters and Spur Gear Shaper cutters.
  • Able to use conventional grinding wheels and CBN or diamond grinding wheels for efficient grinding or sharpening on HSS and Tungsten Carbide Hobs.
  • The machining data can be directly input by touching screen, and full control settings can be realized for automatic operation.
  • After settings such as rough grinding, fine grinding and grinding strokes enable high-efficiency as well as high-precision sharpening of the cutter edge and a drastic reduction in grinding time.
  • Since the indexing axis and the feed axis are both controlled by servo motors, preparations for processing such as cumbersome gear exchange are eliminated.
  • Graphical dialogue operation software, easy to learn.
  • AA grade hob accuracy can be achieved with appropriate parameter settings.
  • 10,000 rpm built-in high-speed grinding wheel spindle.
  • 4 Axis SYNTEC controller included TFT touch screen.
  • Compact structure saves floor space.
  • Use a fully enclosed splash guard and oil mist collector to prevent dust and mist form splashing.

Error of hobs and effect of the hobbed gears

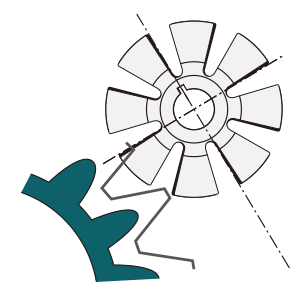

Correct Cutting Face
Cutting Lance Profile

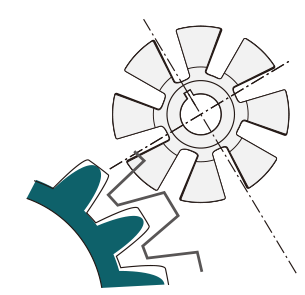

Plus Rake Angle
Index Error

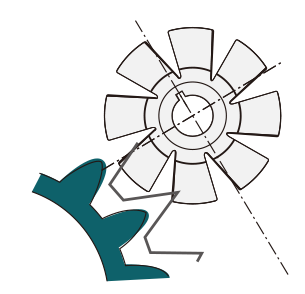

Minus Rake Angle
Model A6
Gash Lead Range
Min. / Max. workpiece diameter 20 mm / 150 mm
Max. length 200mm
Max. grinding depth 25mm
Flute range 1-99
Lead angle range -
Gash lead range
Mechanical Specifications
Min. / Max. distance between centers 150 / 365 mm
Max. axial slide travel (Z axis) 405 mm
Max. weight (workpiece with carrier) 50 kg
Micro-Adjustment Tailstock ± 60um (optional 選配)
Grinding Wheel Specifications
Min. abrasive grinding wheel root diameter /
Max. grinding wheel diameter
115 / 200 mm
Max. grinding wheel thickness 25mm
Max. rpm of grinding spindle 5500 rpm
Drive power of grinding spindle 2.2 KW
Electric System
Voltage 3Ø220V
Current Requirement 30A
Ambient Temperature 10˚C-40˚C
Max. Load of Machine 10 KVA
Cnc Controller
Cnc Controller
Space Requirement (LxWxH) 2400 x 2500 x 1800 mm
Weight of Basic Machine 2800 kg


  • Hob Mandrel
  • Oil mist Collector
  • Cooling system for spindle
  • Grinding fluid filtration equipment

The specifications and design characteristics shown in this catalog are subject to change without prior notice.
